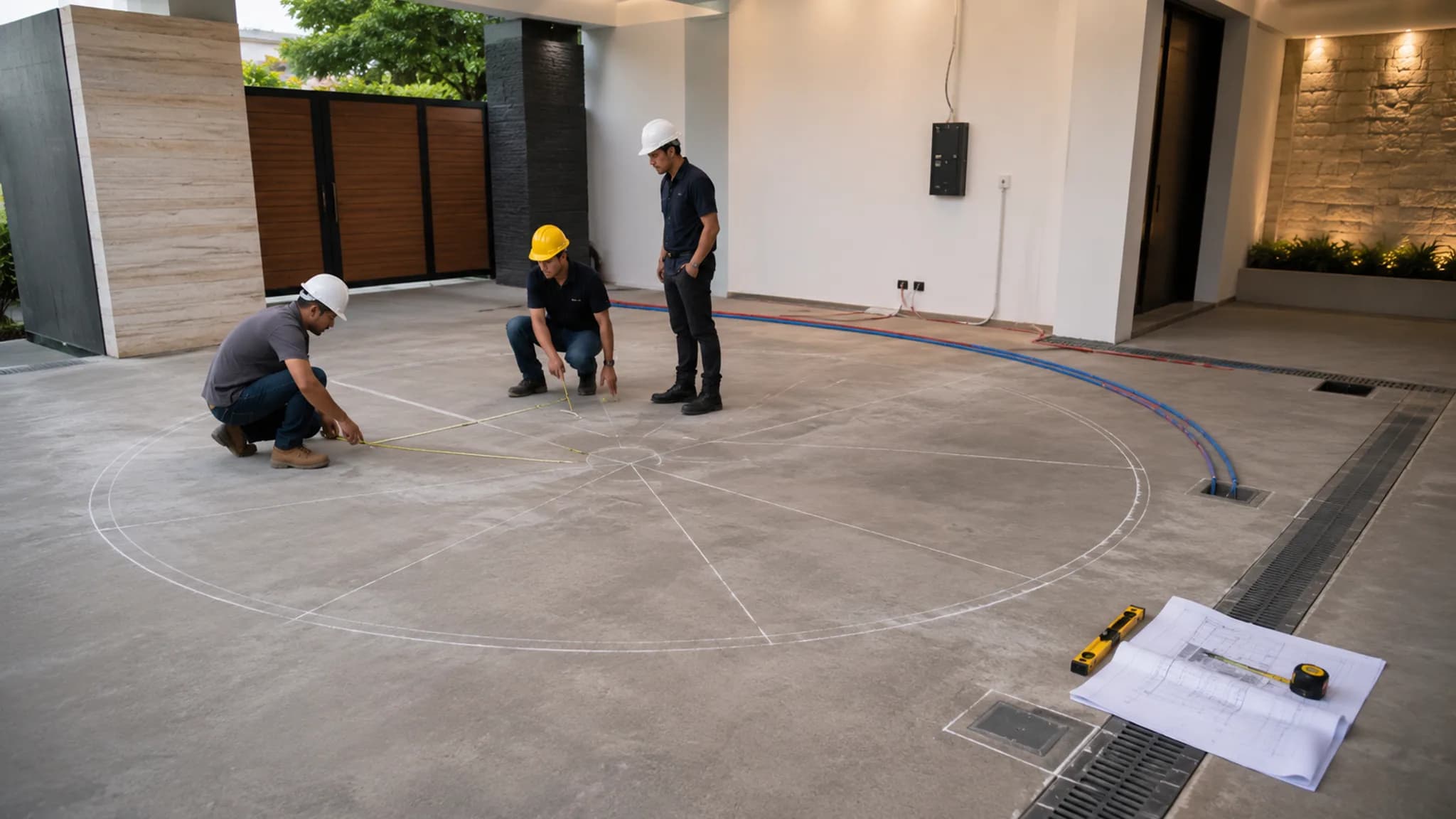

1. Site marking
Confirm the platform center, diameter, cabinet side and drawing reference before pit work starts.
CTA series
Pit-mounted CTA Turntable
A CTA pit-mounted car turntable sits inside a prepared pit to create a flush-floor finish. It is best planned during a new build or major renovation because pit depth, concrete, drainage, conduit and cabinet position must match the confirmed model and project drawing.
Email a CAD pit drawingFast CTA pit review
Send pit and drawing details before choosing a pit-mounted CTA turntable
A pit-mounted car turntable can create a clean flush-floor result, but the pit, concrete, drainage and conduit route must match the selected model. Send drawings and site photos early so Huanyu can check CTA feasibility before production.
What to send first
Pit diameter, pit depth, center point and surrounding finished floor level
Vehicle model, wheelbase, gross weight and expected daily use
Drainage point, conduit route, cabinet side and local voltage
Project stage: drawing, new-build, renovation or existing pit
Destination country, site photos, CAD file or hand sketch for review
CTA quote contact
Choose how to send your pit-mounted cta turntable request
Share site dimensions, vehicle weight and destination by form, WhatsApp or email. The sales team can then confirm model fit and current quotation details.
Quick facts
Pit-mounted CTA Turntable key facts
Key information for early model selection before Huanyu reviews the site, vehicle data and installation conditions.
- Product type
- CTA pit-mounted / recessed car turntable
- Equipment height
- Catalog planning reference: 250 mm
- Diameter range
- Catalog planning range: 3.5 m to 6.5 m
- Rated load
- Catalog planning range: 3000 kg to 5000 kg
- Best fit
- New-build villas, basements and flush-floor projects
- Project boundary
- Approved civil and electrical drawings govern site work
Project review
Site details Huanyu reviews before quotation
Huanyu confirms the final design after reviewing the site, vehicle data, destination country and installation preference.
Catalog planning reference: 250 mm CTA equipment height
Catalog planning range: 3.5 m to 6.5 m diameter
Catalog planning range: 3,000 kg to 5,000 kg rated load
Pit, foundation, conduit and drainage follow the approved project drawing
Largest vehicle, approach path and finished-floor level are reviewed together
Voltage, frequency, phase, cabinet position and local electrical work are confirmed before production
CTA pit-mounted system
Pit-mounted planning for flush-floor turntable projects
Pit-mounted turntables are suited to new-build villas, basement garages and permanent installations where a flush floor finish is preferred.
The CTA catalog planning reference uses a 250 mm finished pit depth; the approved project drawing governs the site work.
The catalog pit-diameter reference is the platform diameter plus 30-40 mm, with circularity checked against the approved drawing.
A 200 mm concrete base with C30 or higher concrete is a catalog planning reference, not a substitute for local structural design.
Check pit level, circularity and foundation tolerances against the approved drawing before permanent fixing.
The catalog planning reference includes a 50 mm conduit; the final route and size follow the approved electrical drawing and local electrician.
Outdoor, semi-outdoor and basement installations need a drainage route that keeps standing water away from mechanical and electrical parts.
Installation flow visuals
From site marking to finished vehicle access
These planning reference visuals help buyers, architects and contractors understand the pit-mounted CTA workflow before quotation.

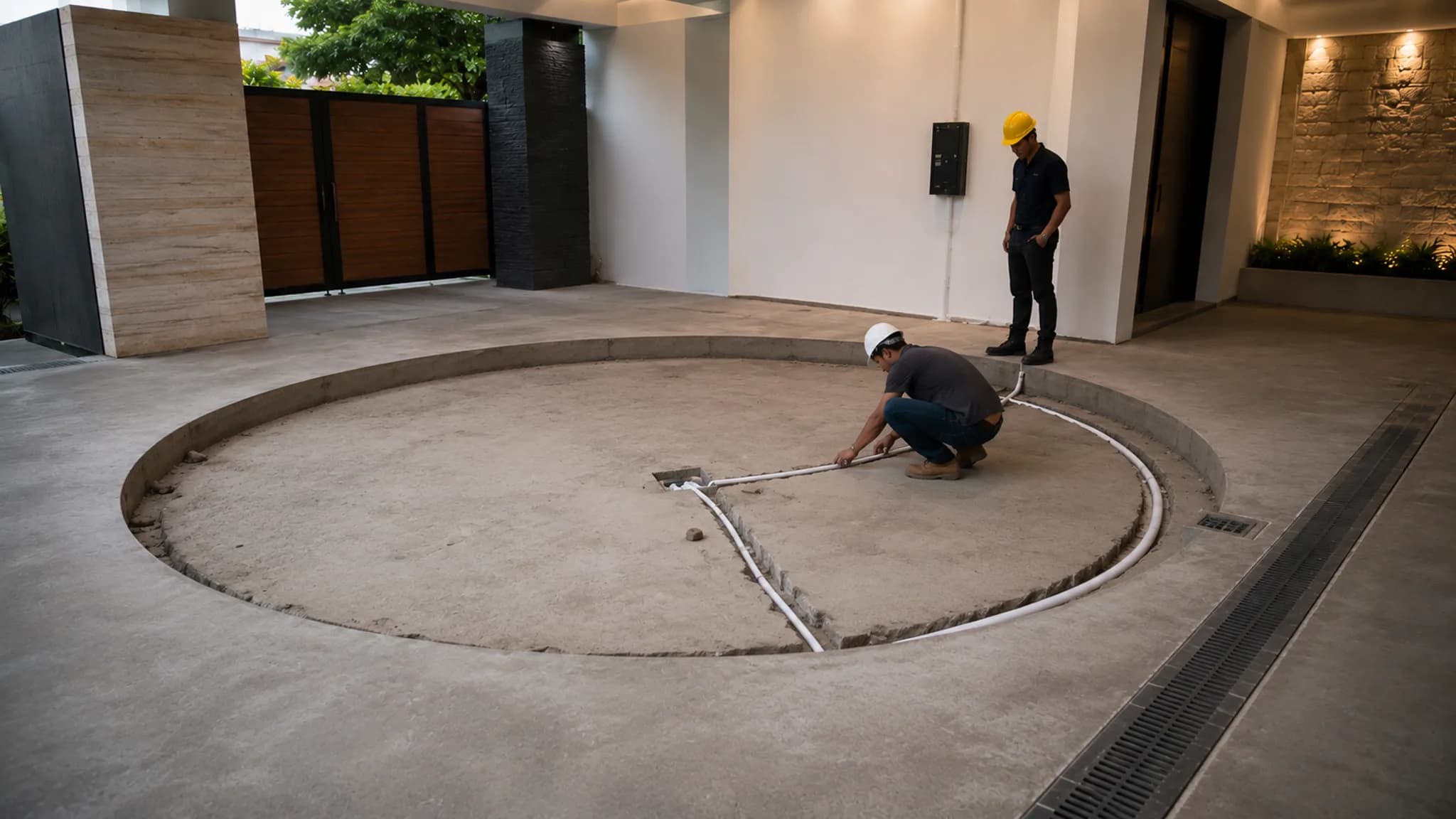

2. Pit and conduit
Prepare the recessed pit, conduit path and drainage direction according to the confirmed layout.

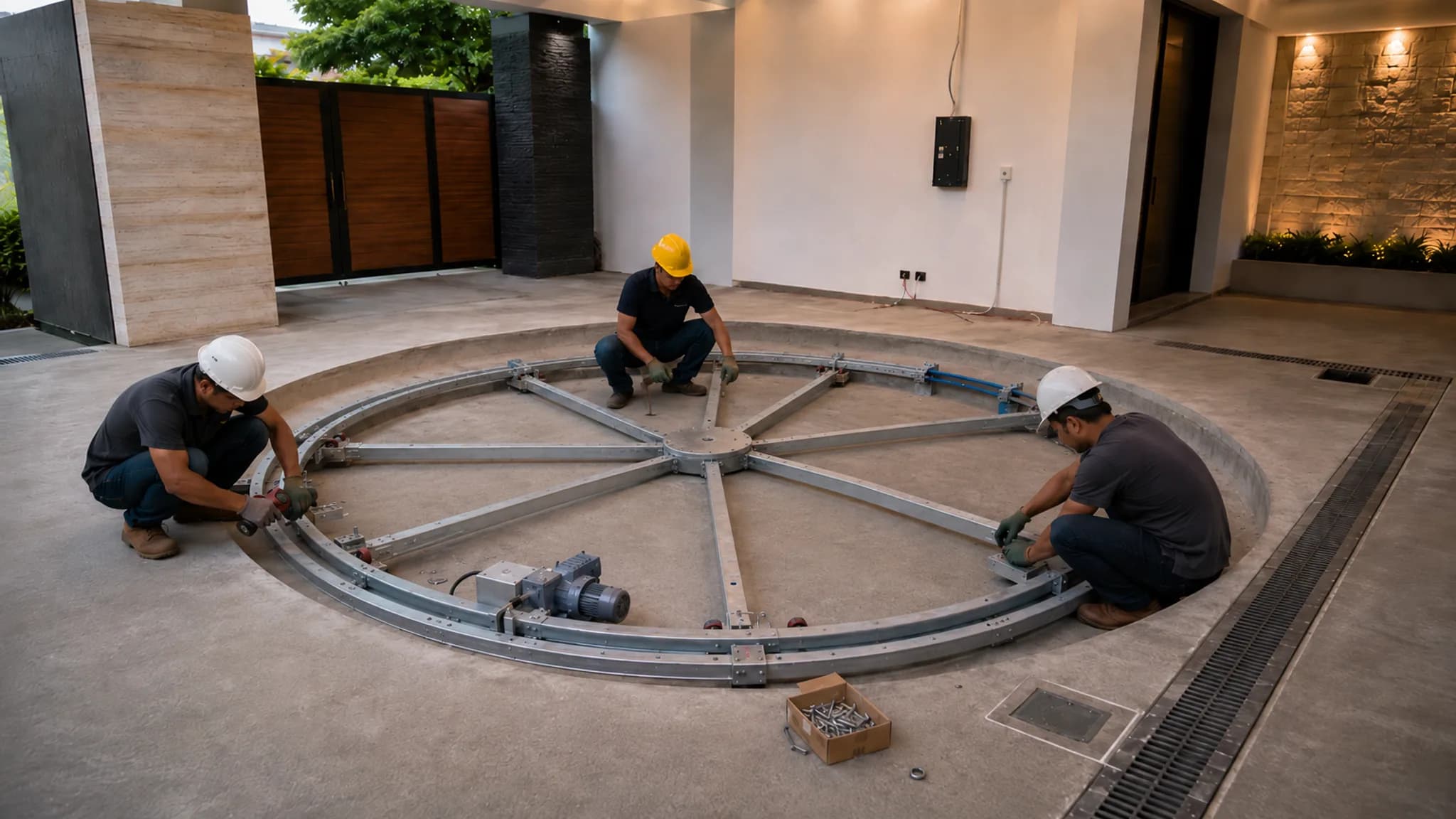

3. Frame positioning
Position the circular frame, drive components and leveling points before final surface work.
4. Flush platform
Check the finished floor level, edge clearance and anti-slip platform surface after installation.
5. Vehicle check
Review vehicle position, turning clearance and daily access after the platform is finished.
Customer-supplied installation evidence

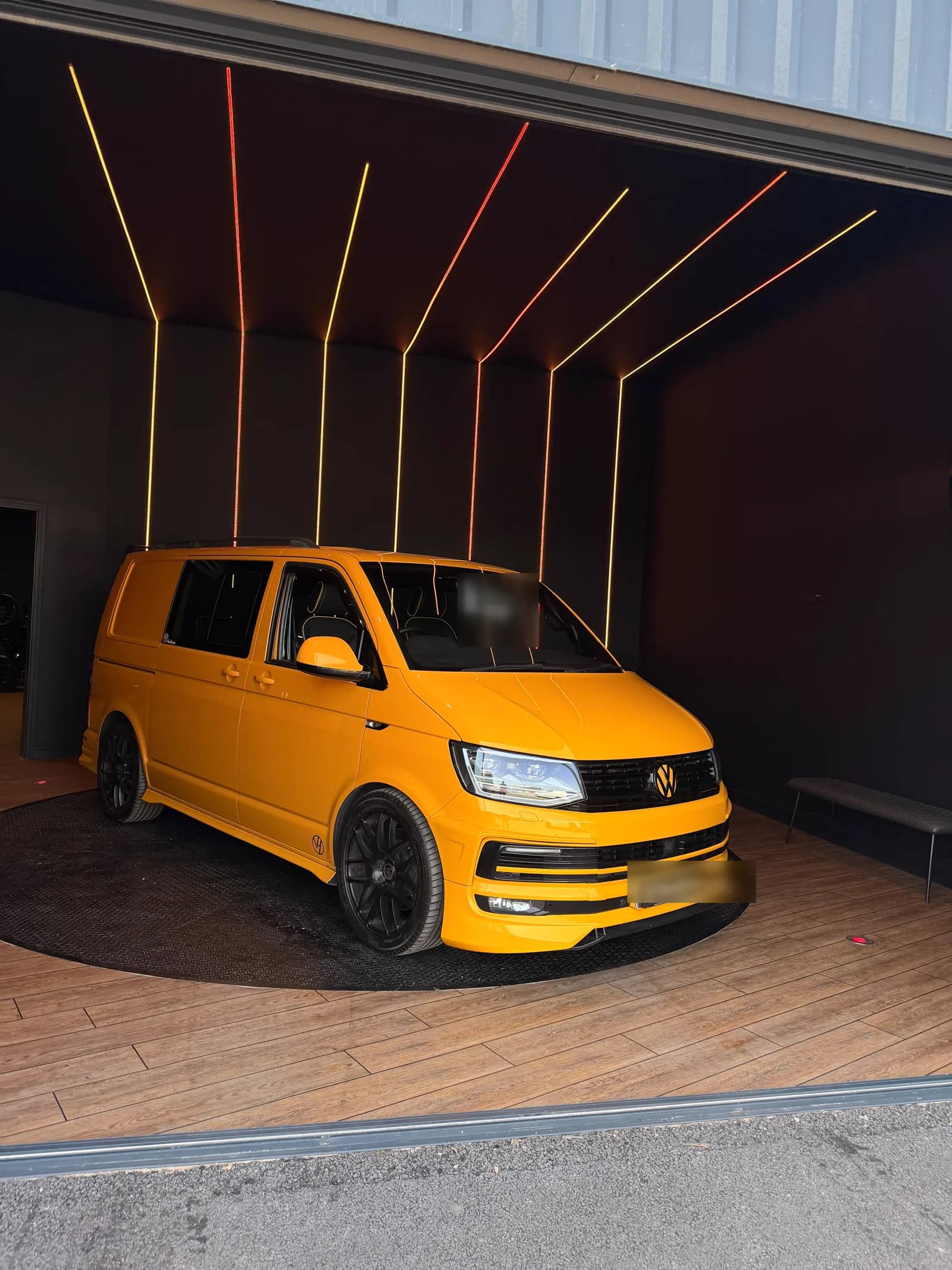

Australian showroom installation reference
This completed CTA installation for an Australian customer uses a 4.5 m pit-mounted platform with a 3,000 kg rated load. The customer-supplied photo shows the vehicle positioned on the finished turntable in an indoor automotive showroom.
- Platform diameter
- 4.5 m
- Rated load
- 3,000 kg
Customer, business and vehicle-identifying details have been removed for privacy. The vehicle brand shown does not imply endorsement.
Series
Diameter
Load
Best use
CTA catalog planning range
3.5-6.5 m
3,000-5,000 kg
Project-specific pit-mounted residential and commercial applications
Best fit
Choose CTA when the project can plan the pit early
A pit-mounted car turntable is strongest when the owner, architect or contractor can coordinate civil work before the final floor finish.
New-build villas, basement garages and architect-led residential projects where the pit can be coordinated early.
Permanent driveway projects where the owner wants a cleaner flush-floor result.
Showrooms or display areas where the platform should integrate with the floor finish.
Projects where civil drawings, conduit, drainage and local installation responsibility can be confirmed before finishing.
Not ideal for
Finished floors where opening a pit would be too disruptive or expensive.
Outdoor or basement sites where standing water cannot be controlled.
Projects without trained mechanical installers, a qualified electrician or a local team able to prepare the site.
Temporary or leased spaces where future relocation may be required.
Planning item
Typical CTA requirement
Confirm before quote
Equipment and pit depth
The CTA catalog uses 250 mm as an equipment-height planning reference.
Use the approved project drawing to confirm finished pit depth, floor level, edge detail and service clearance.
Pit diameter
The catalog civil reference allows 30-40 mm beyond platform diameter.
Confirm the selected model, approved drawing, pit circularity and contractor tolerance before concrete work.
Foundation and edge
A 200 mm C30+ concrete base is a catalog planning reference.
Local structural review, reinforcement, pit edge protection and the approved civil drawing govern construction.
Power and conduit
The catalog reference includes a 50 mm conduit near the cabinet side.
Confirm voltage, frequency, phase, cable route, cabinet position and local electrician requirements.
Water control
Outdoor, semi-outdoor and basement pits need a planned water outlet.
Confirm exposure, drainage capacity, waterproofing and how standing water is kept away from mechanical and electrical parts.
Project responsibility
A flush-floor result starts with a complete handoff
Catalog values support early planning. The approved project drawing, quotation and installation documents govern production and site work.
Buyer or project team sends
Vehicle data, approach dimensions, site stage, pit or floor drawing, local power, destination and clear photos of the planned installation area.
Huanyu reviews
The applicable CTA model, planning diameter and load, approved project drawing, equipment scope, packing scope and remote-support documents.
Local site team verifies
Foundation, reinforcement, pit, drainage, conduit, lifting access and local safety requirements. Electrical work is handled by a qualified electrician.
CTA quote input checklist
Send these details before asking for a pit-mounted quotation. The drawing stage is where cost, floor finish and installation risk can be controlled.
Largest vehicle make/model or its length, width, wheelbase, weight and ground clearance
Available circular area, entrance clear width and vehicle approach direction
New-build, renovation or drawing stage, plus indoor, outdoor, basement, garage or showroom use
Pit or floor drawing, finished-floor level, foundation status, drainage route and site photos
Voltage, frequency, phase, cabinet side, conduit route and control preference
Preferred platform finish, destination country, trade term and required installation support
Pit-mounted car turntable FAQ
When should a pit-mounted car turntable be planned?
Plan it before final concrete and floor finishing. Pit depth, pit diameter, conduit, drainage and cabinet position are much easier to coordinate before the building work is locked.
Does CTA always require drainage?
Indoor dry projects may have different requirements, but outdoor, semi-outdoor and basement projects should review water flow carefully. Standing water in the pit can create installation and maintenance problems.
Can a local contractor install the pit-mounted turntable?
The work should be handled by trained mechanical installers and a qualified electrician using the approved project drawing and applicable manual. Huanyu can provide project documents and remote guidance, while local civil, electrical and safety compliance remain with the site team.
Related planning pages
Use the comparison guide only when the structure is undecided
This CTA product page owns pit-mounted planning ranges, site limits and quotation readiness. The comparison guide owns only the CTA-versus-CTB decision.
Installation guide
Review pit, concrete, conduit, drainage and electrical preparation.
CTB pitless option
Compare the surface-mounted alternative for finished floors.
Pitless vs pit-mounted
Use the buyer decision guide only when the project is still choosing between CTA and CTB.
Car turntable product line
Review the main CTA and CTB product directions before sending project details.
Specifications
CTA model data for early selection
Only CTA models are shown on this page. The exact model is selected by diameter, load capacity, floor condition and project requirements.
General specifications
- Installation type
- Pit-mounted / recessed
- Diameter range
- 3.5 m, 4.0 m, 4.5 m, 5.0 m, 5.5 m, 6.0 m, 6.5 m
- Rated load
- 3,000 kg / 4,000 kg / 5,000 kg depending on model
- Unit height
- 250 mm inside a prepared pit
- Pit planning
- Commonly 250 mm depth with concrete, conduit and drainage review
- Input voltage
- 110 V to 240 V single-phase options
- Drive system
- Friction drive with VFD control
- Control
- Control panel and industrial remote
CTA public model range
Only CTA rows are shown here so buyers compare the correct installation family. Final model selection is confirmed after reviewing site dimensions, vehicle weight and installation conditions.
CTA pit-mounted
CTA- Diameter
- 3.5 m to 6.5 m
- Rated load
- 3,000 kg to 5,000 kg
- Unit height
- 250 mm
| Series | Model | Type | Diameter | Load | Height |
|---|---|---|---|---|---|
| CTA | CTA35-3 | Pit-mounted | 3.5m | 3000kg | 250mm |
| CTA | CTA40-3 | Pit-mounted | 4.0m | 3000kg | 250mm |
| CTA | CTA45-3 | Pit-mounted | 4.5m | 3000kg | 250mm |
| CTA | CTA45-4 | Pit-mounted | 4.5m | 4000kg | 250mm |
| CTA | CTA50-4 | Pit-mounted | 5.0m | 4000kg | 250mm |
| CTA | CTA60-5 | Pit-mounted | 6.0m | 5000kg | 250mm |
| CTA | CTA65-5 | Pit-mounted | 6.5m | 5000kg | 250mm |
Project proof
Finished privacy-masked media with project protection
Customer project images are anonymized before use and can support trust during model and installation discussions.
Finished indoor car turntable
Privacy-masked project photo after installation, showing a flush white platform and vehicle positioning.

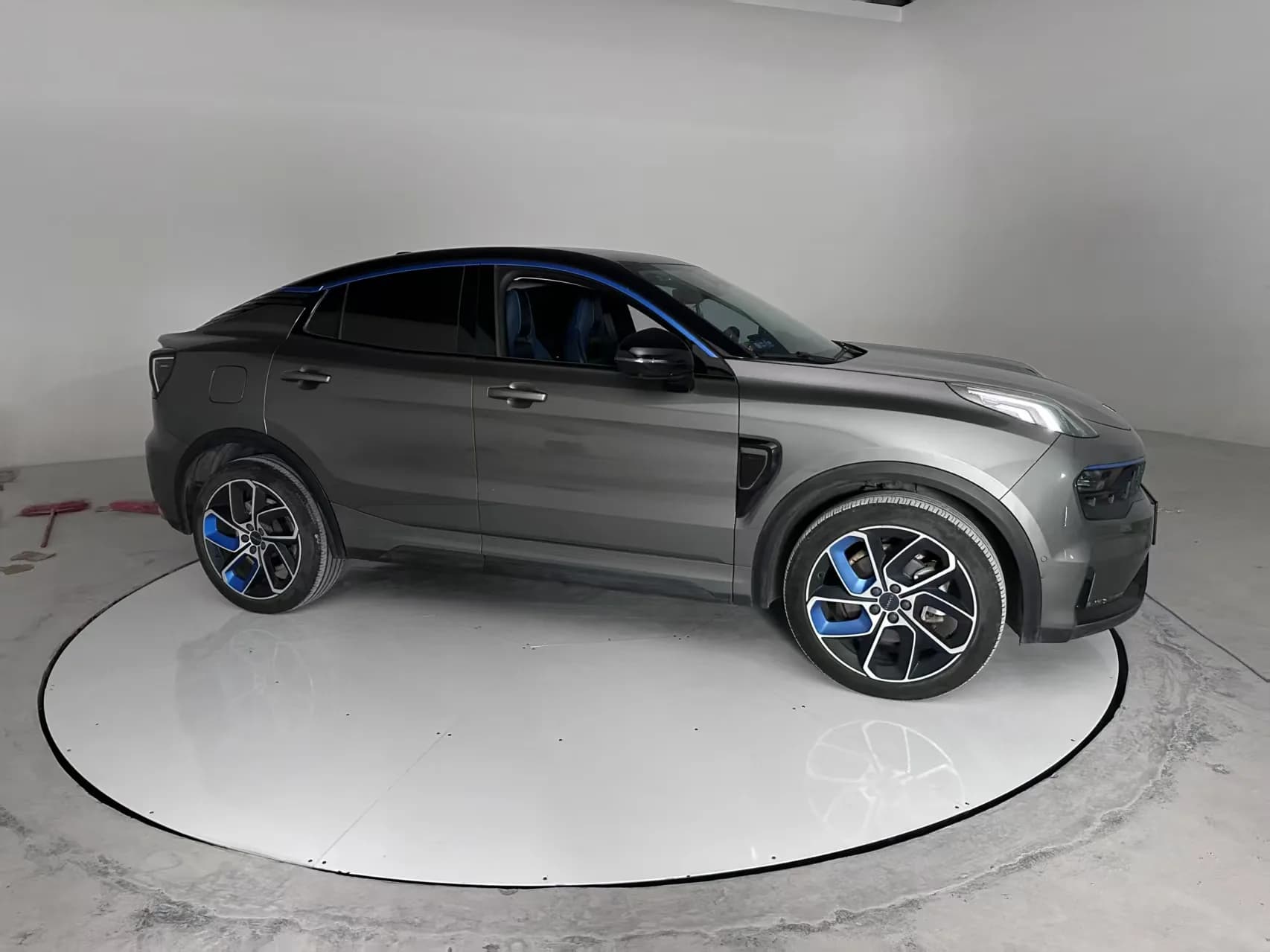

Vehicle side view on platform
The completed turntable supports stable vehicle rotation for display and daily access.

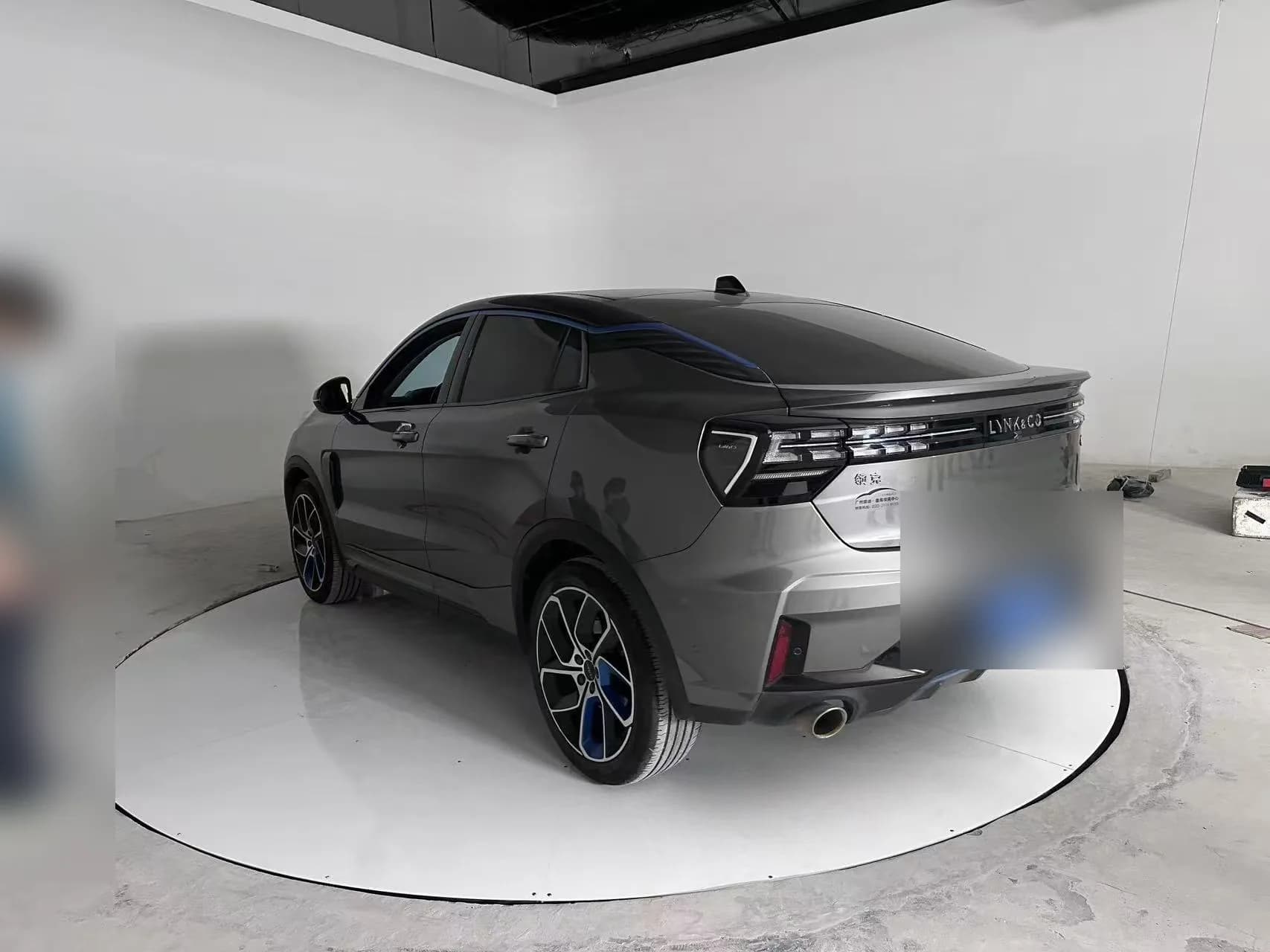

Completed project with privacy masking
Customer vehicle and site media are anonymized before publication to protect project privacy.
Commercial terms
Quotation, payment, delivery and warranty notes
These notes help buyers understand the usual quotation process. Final commercial terms are confirmed in each quotation, proforma invoice or signed contract.
Quote validity
Quotation validity is stated on each offer because raw material, exchange rate and freight conditions can change.
Payment
Standard payment term is 50% deposit after order confirmation and 50% balance before shipment, unless the final quotation, PI or contract states otherwise.
Trade terms
EXW, FOB, CIF and DDP quotations can be prepared according to destination and service scope.
Warranty
The complete machine is covered by a one-year warranty. Final warranty scope and service details follow the quotation, PI or contract.
Installation support
Drawings, manuals, videos and remote technical support can be provided. On-site service is quoted separately.
Project quotation
Need a car turntable for a specific site?
Send the diameter, vehicle weight, installation type and destination country. Huanyu will prepare a project-based quotation.
