Car turntable product line
Huanyu manufactures CTA pit-mounted and CTB pitless car turntables. Send the largest vehicle, usable space, floor or pit condition, voltage, destination and site photos for an engineering review.
Send vehicle and site details on WhatsAppQuick Project Review
Name, country, application and one reply channel are enough to start. Vehicle, site and installation details can be added now or in the follow-up.
Quick facts
This page summarizes the main Huanyu car turntable offer for early buyer comparison before model selection and quotation.
Direct answer
A car turntable, also called a vehicle turntable, is a motorized rotating platform that turns a vehicle in place. It can let the driver leave in a forward direction when a driveway, garage, basement entrance or showroom does not provide enough room for a normal turning path.
It is most useful where the vehicle can reach the platform but maneuvering space is constrained. The practical choice still depends on the largest vehicle, clear entrance, approach and exit direction, available floor or pit condition, rated load, power supply and destination requirements.
A platform diameter alone is not a complete specification. Send the vehicle details and a simple site plan so the usable turning envelope and installation structure can be reviewed together.
Site suitability
A useful first review connects the largest vehicle to the real approach, opening, floor condition and local-work boundary. It does not begin with diameter alone.
01
Record the vehicle envelope, wheelbase and weight before choosing a planning diameter or rated load.
02
Review the approach, entry direction, gate or door opening, clearances and usable turning space together.
03
Identify the finished-floor condition, pit feasibility, drainage and cable route before selecting CTA or CTB.
04
Confirm the available power and who will handle local civil work, unloading, installation and electrical connection.
Plan your car turntable
Start with the largest vehicle and the route it will take onto the platform. A flush installation needs a prepared pit. A surface-mounted unit keeps the platform above the floor, so the ramp and approach space become part of the layout.
CTA

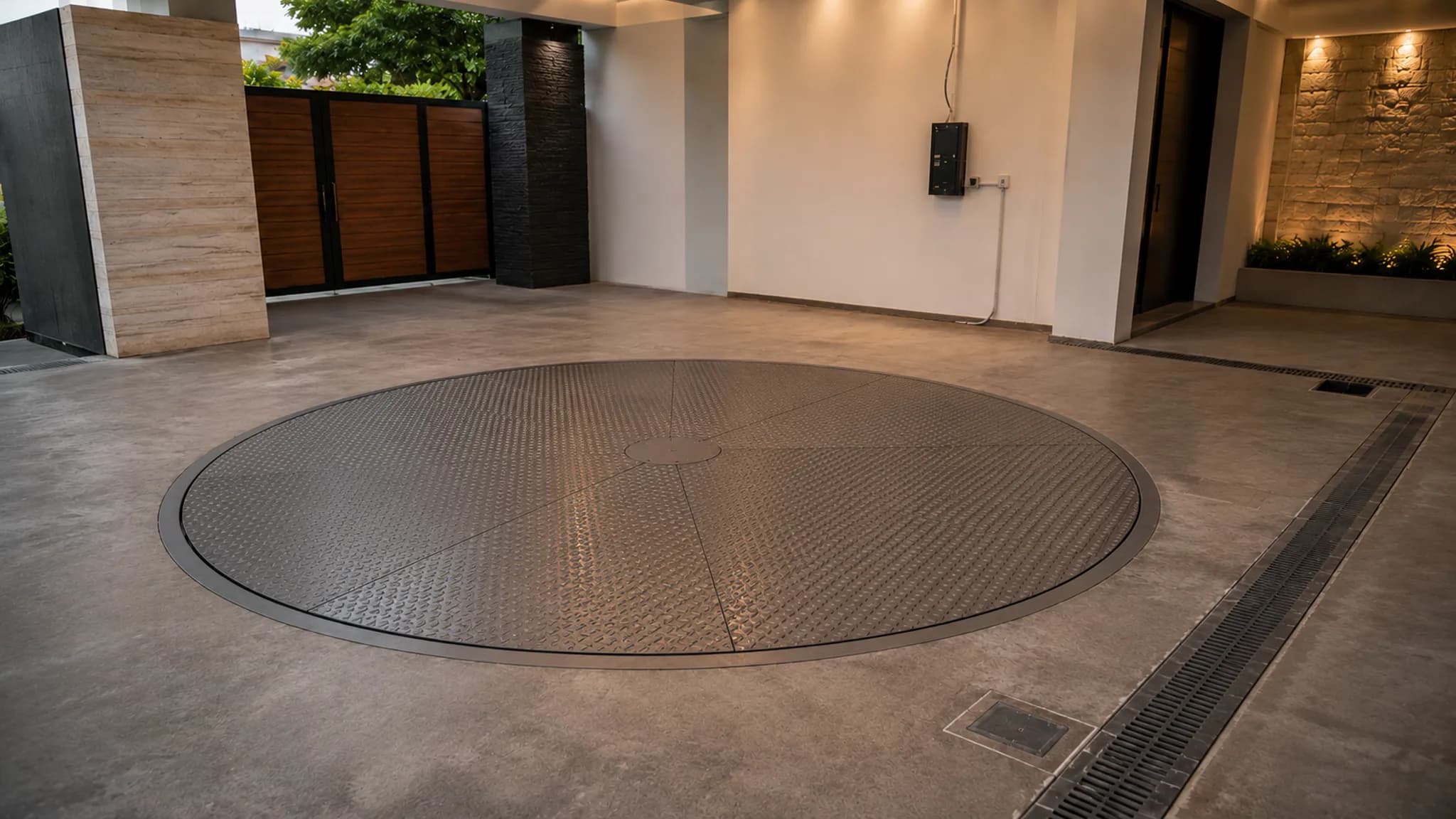

Review CTA when a pit can be built and the platform should meet the surrounding floor. Coordinate the pit, drainage and cable route before the floor is finished.
Catalog planning reference: 250 mm unit height.
Explore CTA planningCTB

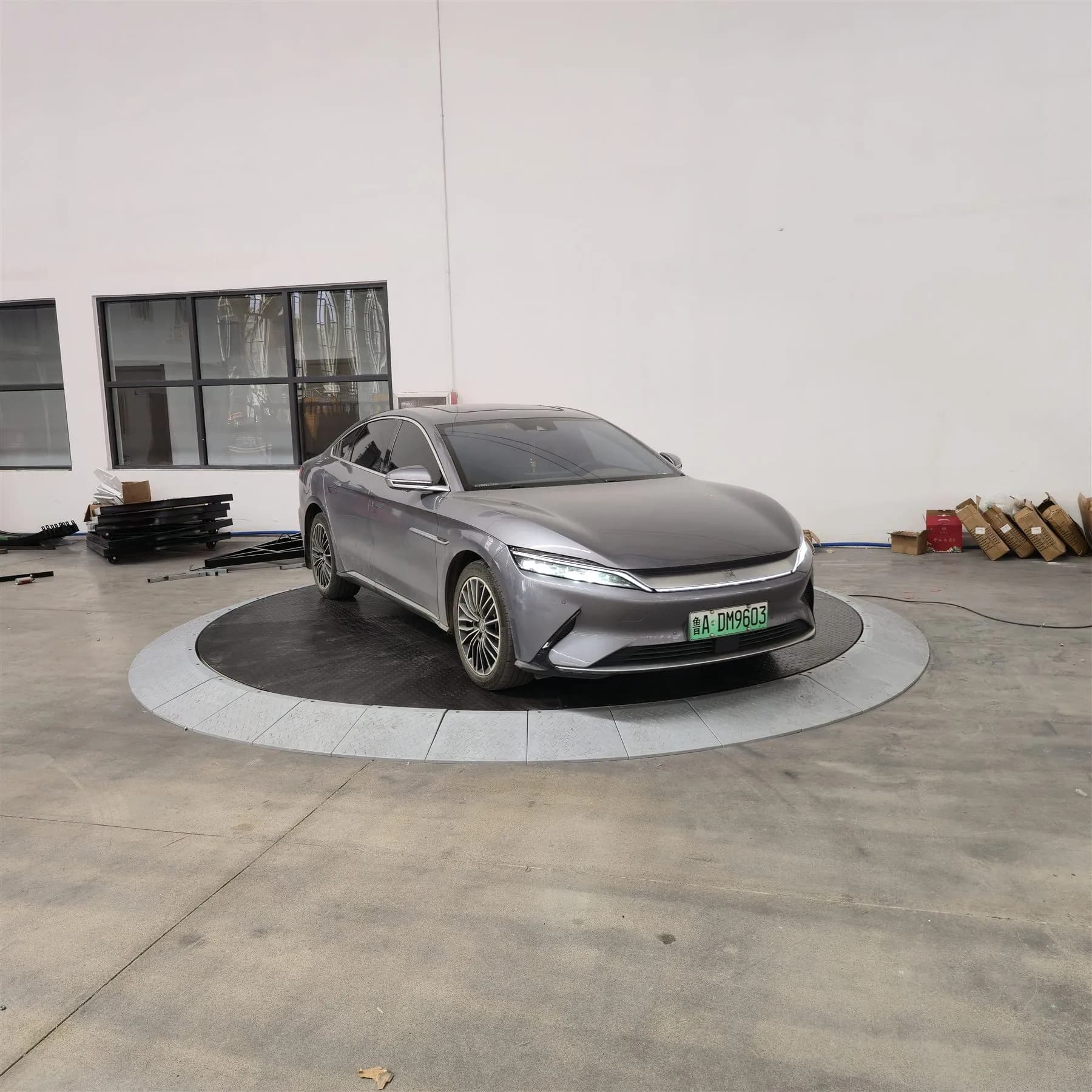

Review CTB for a finished floor or retrofit site. Check floor capacity, the ramp transition and the vehicle approach before choosing a model.
Catalog planning reference: 120 mm unit height.
Explore CTB planning
The platform edge, swept vehicle envelope and additional project clearance are separate checks. Review the largest vehicle, approach route and site conditions before selecting the platform.
Concept planning diagram · Not to scale. Positions and clearances require project review; this is not a construction drawing.
Open full-size access diagramMatch diameter and rated load within the same model row. These catalog values support early planning; approved project drawings and the quotation govern the final configuration.
| Series | Model | Diameter | Rated load | Unit height |
|---|---|---|---|---|
| CTA | CTA35-3 | 3.5 m | 3,000 kg | 250 mm |
| CTA | CTA40-3 | 4 m | 3,000 kg | 250 mm |
| CTA | CTA45-3 | 4.5 m | 3,000 kg | 250 mm |
| CTA | CTA45-4 | 4.5 m | 4,000 kg | 250 mm |
| CTA | CTA50-4 | 5 m | 4,000 kg | 250 mm |
| CTA | CTA60-5 | 6 m | 5,000 kg | 250 mm |
| CTA | CTA65-5 | 6.5 m | 5,000 kg | 250 mm |
| CTB | CTB40-3 | 4 m | 3,000 kg | 120 mm |
| CTB | CTB45-3 | 4.5 m | 3,000 kg | 120 mm |
| CTB | CTB45-4 | 4.5 m | 4,000 kg | 120 mm |
| CTB | CTB50-4 | 5 m | 4,000 kg | 120 mm |
Project roles
The same turntable decision affects layout, civil work, electrical work, receiving and daily operation. These routes keep each role focused on the information it owns.
Architect
Use the installation-planning resource to record the vehicle, turning envelope, opening, pit or floor condition, drainage, cable route and local-work boundary.
Review installation planningContractor
Check the approved project revision, civil and electrical interfaces, unloading route and responsibilities before permanent site work begins.
Review document scopeHomeowner or operator
Send the largest vehicle, usable space, entry direction and floor condition. The engineering review can then advise the planning route without asking you to guess a diameter.
Start an engineering reviewEngineering resources
Existing equipment footage and inspection photos, with AI-generated English narration.
A shared checklist for vehicle, site and contractor coordination.
Review floor or pit preparation and the project handover.
Review configuration, packing and installation responsibilities.
Coordinate the platform, camera, background and vehicle path.
Review the camera, backdrop and lighting positions alongside the vehicle sweep, project clearance and access routes. Final positions depend on the vehicle, desired images and available space. The concept diagram is not to scale; camera triggering and software require a separate compatibility review.
See the layout diagram and photography guideManufacturer evidence

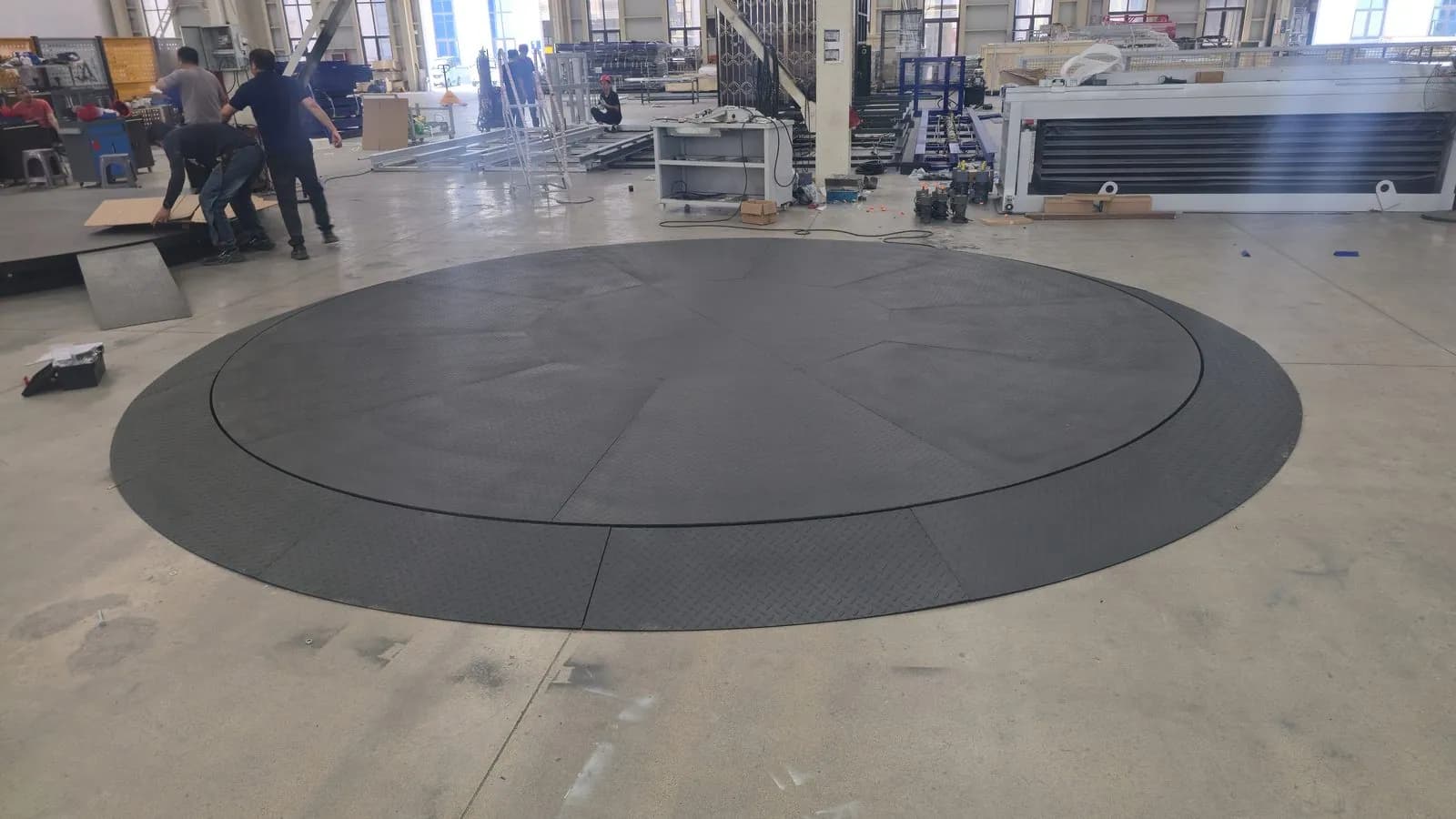

Huanyu supports project review with public workshop, functional-check and export-packing references. Final configuration, testing and document scope are confirmed against the selected model and contract.
Planning a US project? Review our USA car turntable planning guide for site inputs, electrical planning, shipping and local installation responsibilities.
Inside the workshop
These workshop views show the complete platform, approach ramps and the structure beneath the deck.

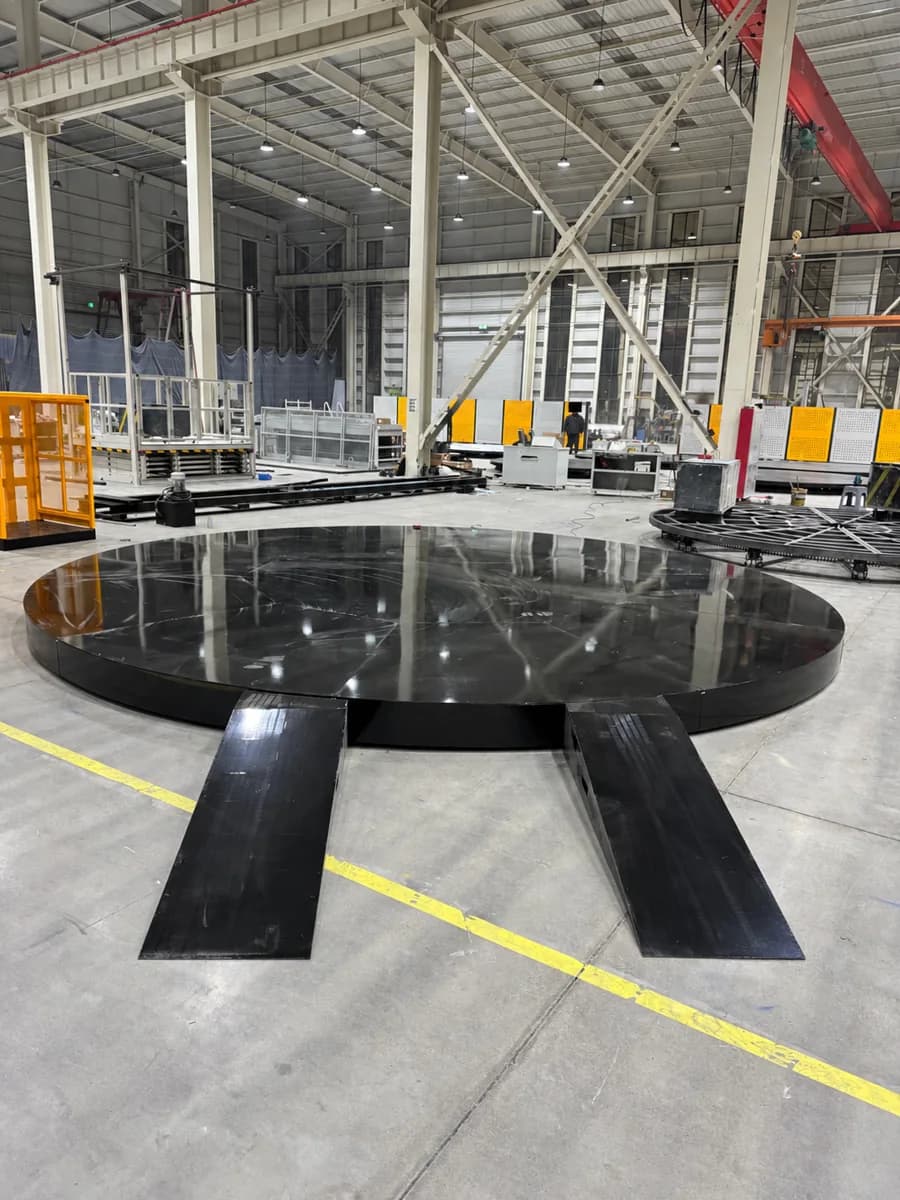

The platform and separate ramps are shown together. Include the approach space when planning the vehicle route.

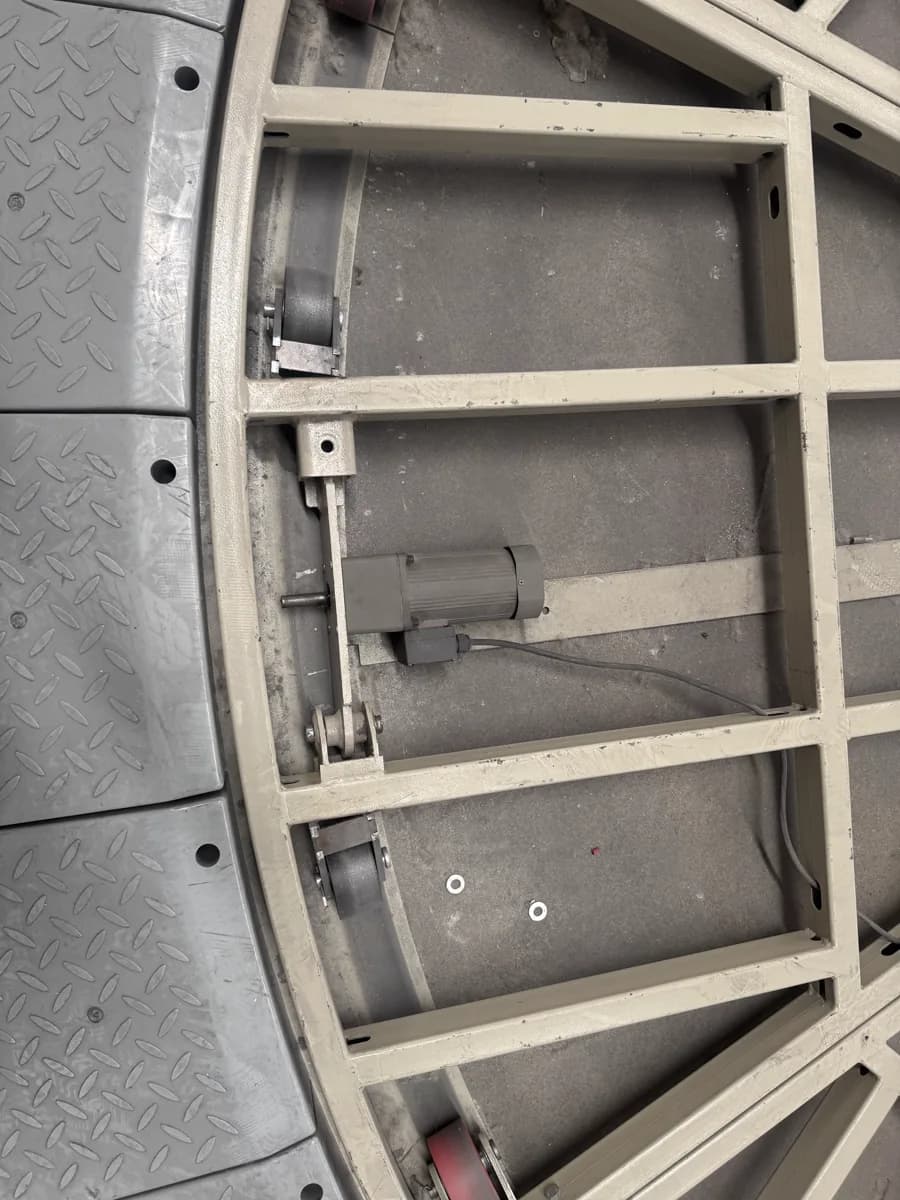

This view shows the motor, wheel components and nearby frame members with part of the deck uncovered.

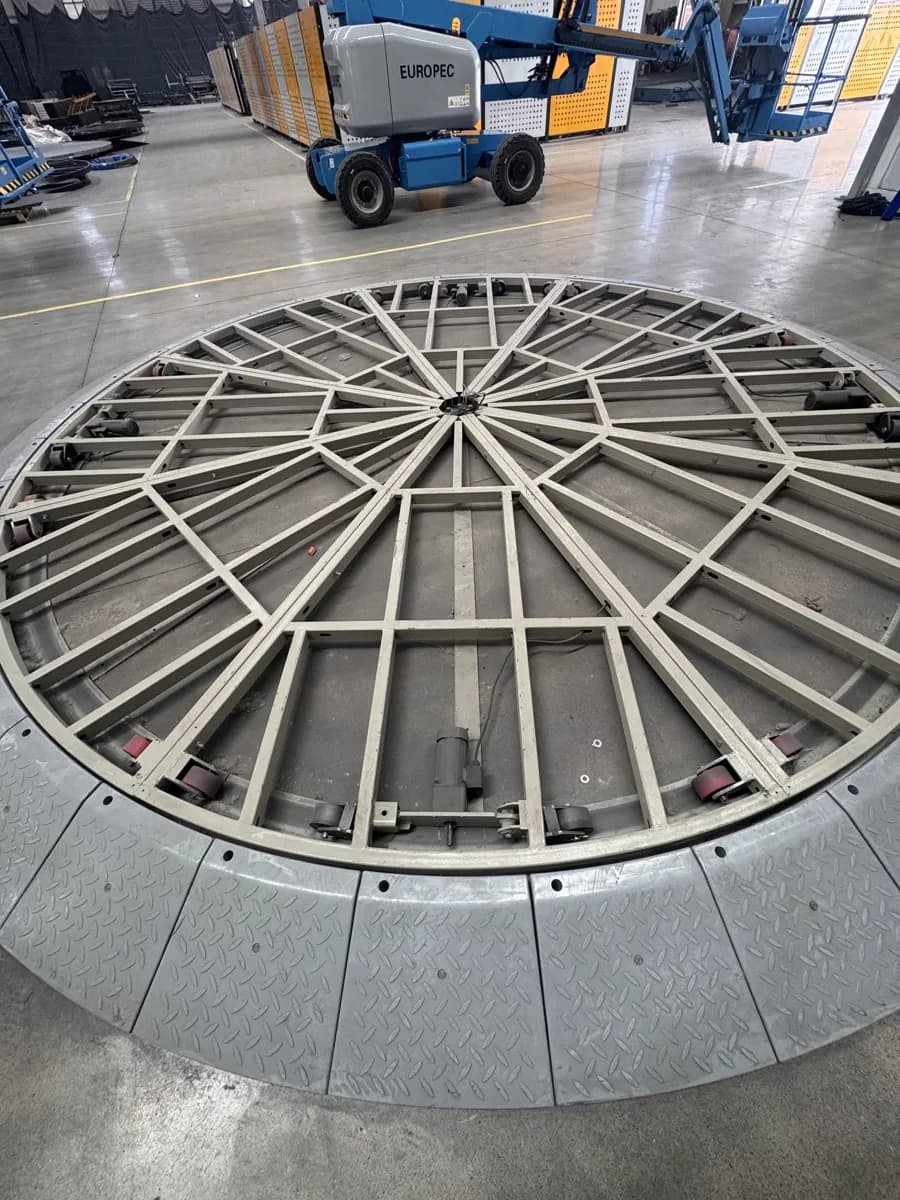

The open circular frame makes the radial members and component positions visible during workshop assembly.

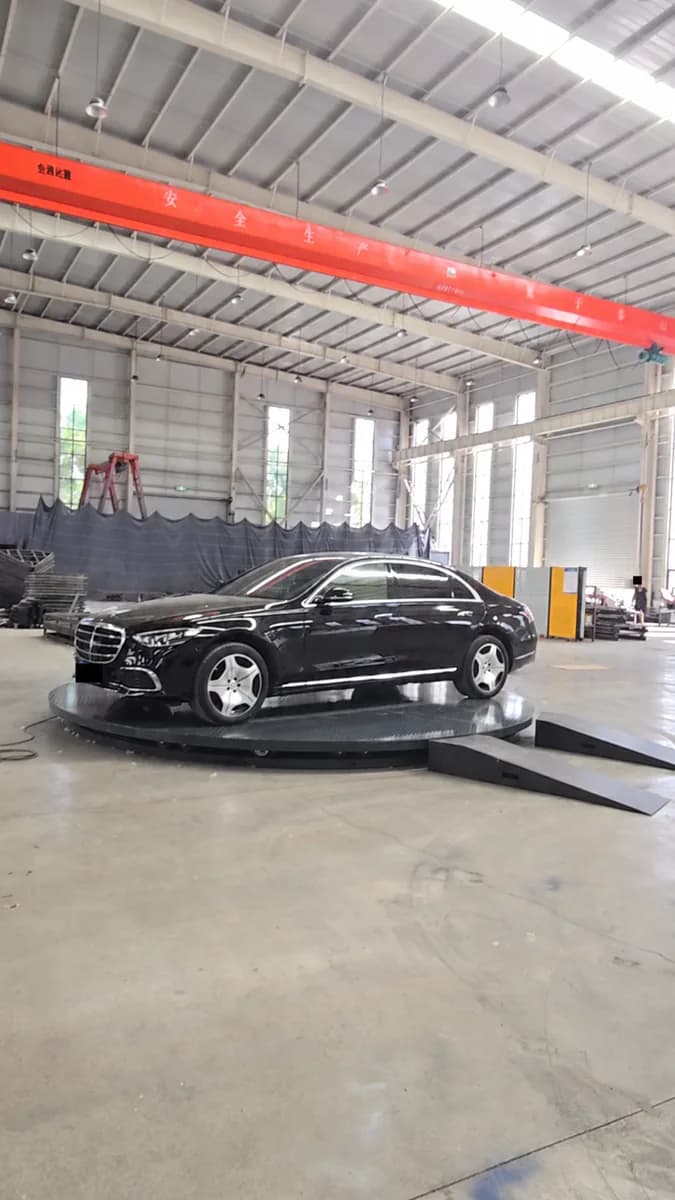

A workshop view of a car positioned on the platform, with the approach ramps alongside it.
Workshop video references
These workshop demonstrations show a vehicle rotating on the platform. Review the vehicle envelope, approach and platform edge before discussing the layout for your site.
Watch the vehicle change direction relative to the workshop. The platform edge and the space swept by the vehicle are separate planning checks.
Consider the vehicle, platform edge and ramp together. Use the largest intended vehicle and a site plan for selection.
Visual references only. Final diameter, rated load, clearance and controls require project review; these clips are not rated-load tests or customer acceptance records.
Check floor or pit conditions, the approach route and installation responsibilities before confirming a configuration.
Review installation planning
Australia · Indoor showroom
Installed
This customer-supplied photograph shows a 4.5 m pit-mounted CTA45-3 in an Australian automotive showroom. The project record confirms a 3,000 kg rated load. The vehicle is positioned on the finished platform, with the surrounding showroom floor visible.
U.S.-bound · Factory packing
Prepared for shipment
Protected car turntable modules are packed at the factory for an anonymized project in Fort Lauderdale, Florida. This photograph records the preparation stage before shipment. For your order, confirm package dimensions, unloading access and site assembly responsibilities together.
These views show the platform and surrounding site at stages before the work is complete.

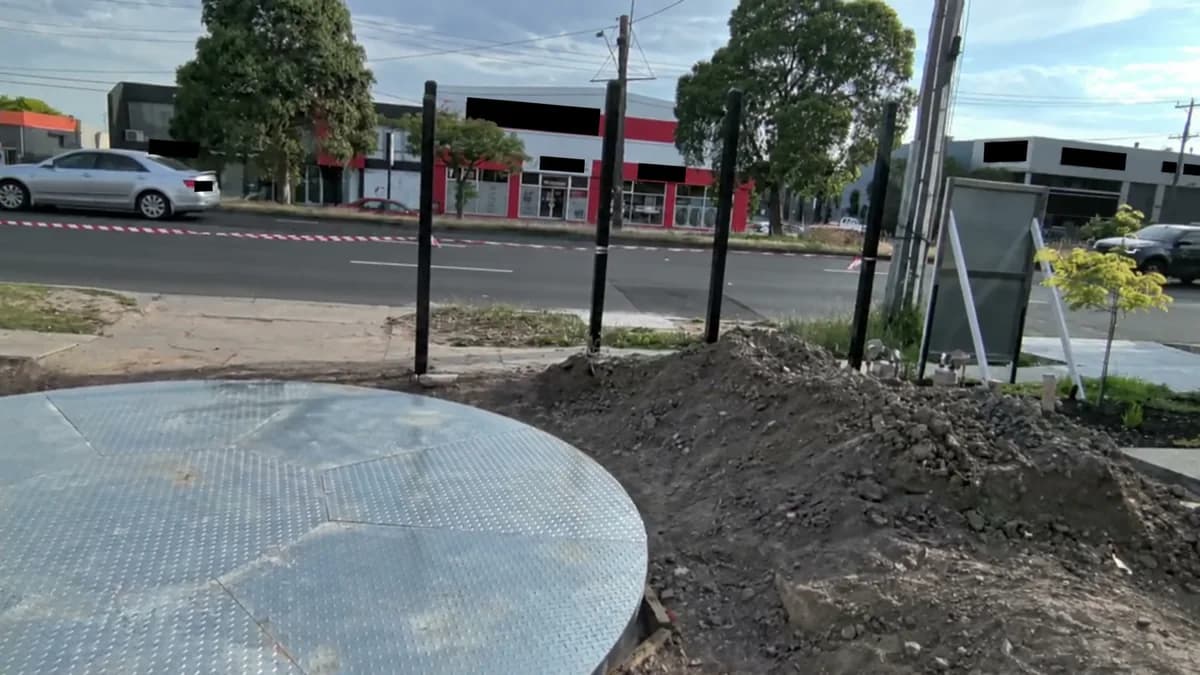

Australia · Outdoor site
Site works in progress
The circular platform is shown beside unfinished ground and paving work at an outdoor site in Australia.

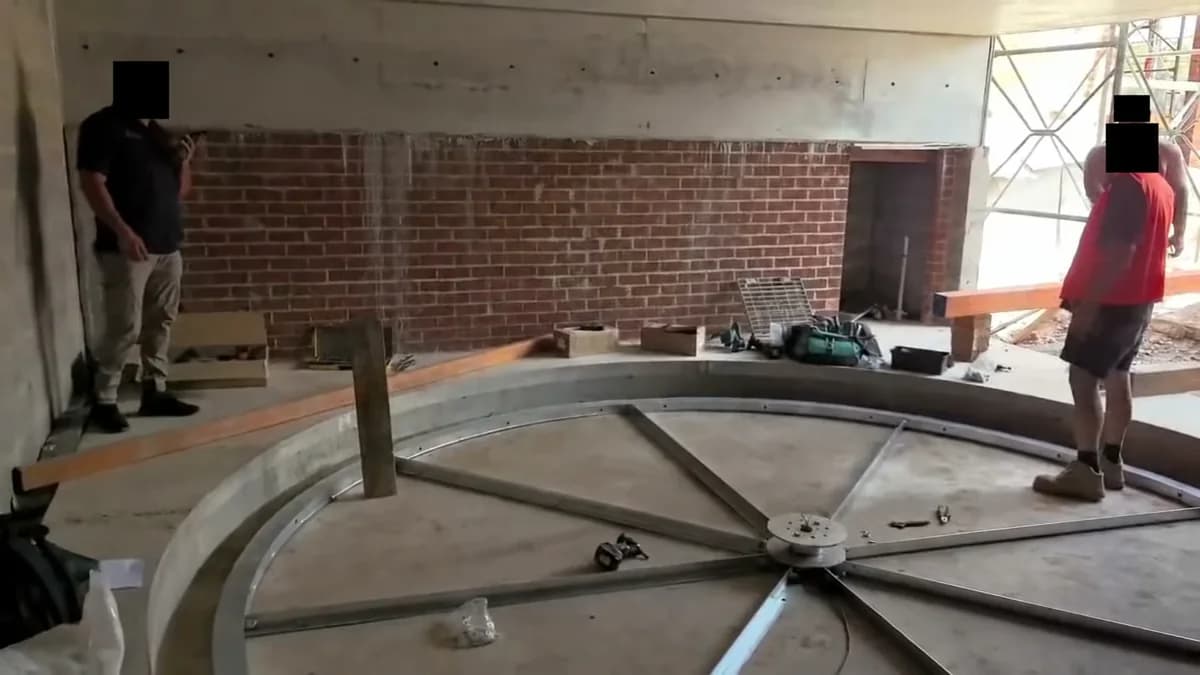

Saudi Arabia · Installation stage
Installation in progress
The circular frame and radial supports are exposed at a site in Saudi Arabia while construction work is still in progress.
Evidence chain
A factory photo proves that equipment exists. A usable supplier review also connects the selected machine to its current drawings, checks, packing and site handover.
Check certificate and document scopeConfirm the selected structure, planning diameter and load, finish, voltage, destination and support boundary in the quotation and applicable project drawings.
Evidence to request: Quotation scope, approved drawing revision and named project inputs
Review the applicable assembly or functional-check record, packing scope, included modules and accessories, plus the installation documents needed by the receiving team.
Evidence to request: Check record, packing list or photos, manuals and receiving information
Keep the drawing revision, installation leads, controlled trial-run result and open items together. The project manual and qualified local team govern site work.
Evidence to request: Handover record, trial-run result and outstanding-item list
Supplier verification
Workshop and packing photos are useful evidence, but they do not replace project-specific documents. A reliable comparison checks the machine, drawings, delivery boundary and support terms together.
The quotation should identify the installation type, planning diameter and load, finish, voltage, destination and support scope instead of naming diameter alone.
Before pit, conduit, drainage or permanent fixing begins, ask which approved project, civil and electrical drawings apply to the selected configuration.
Confirm the packing scope, included modules and accessories, trade term, unloading responsibility and any assembly that remains for the site team.
Record who handles local civil work, mechanical installation, electrical connection, the applicable test steps and final site safety review.
Ask the quotation, PI or contract to state the warranty period, covered items, exclusions, remote or on-site support, spare-parts route and service contact.
Tell us the application and destination country. Add your largest vehicle, a site sketch and the floor condition if available. You can start a conversation before every dimension is known.
We can review the likely installation direction and identify the measurements needed for model selection. Drawings and photos can follow by the agreed email or WhatsApp route.
Discuss my vehicle and siteApplications
Each use case has different space, finish and installation requirements.
Help vehicles enter and exit forward in villas, tight residential driveways and private garages.
A practical turning solution for home garages, basement parking and renovation projects.
Display vehicles from every angle in dealerships, exhibitions and premium retail spaces.
Support controlled vehicle rotation for consistent photo and video capture workflows.
Responsibility boundary
The exact boundary follows the quotation or contract. Use these headings to make sure equipment, local work and shared approvals are assigned before production and site work proceed.
FAQ
Start with the largest vehicle, wheelbase, entry direction, opening clearances and usable turning envelope. A diameter should be reviewed with the site rather than selected as a stand-alone number.
CTA is the pit-mounted direction for a prepared pit and a flush finished-floor result. CTB is the surface-mounted direction for an existing finished floor or retrofit, but the ramp, approach path and surrounding clearance still need review.
Send the largest vehicle, usable space, preferred installation direction, floor or pit condition, available power, destination and required support scope. Site drawings and access photos are useful when available.
The boundary must be written into the quotation or contract. Local civil work, drainage, unloading, mechanical installation and electrical connection should each have a named responsible party before site work begins.
Only the approved project revision for the selected configuration should govern pit, conduit, drainage or permanent fixing work. General web information is for early planning, not a construction release.
Project quotation
Send the diameter, vehicle weight, installation type and destination country. Huanyu will prepare a project-based quotation.
