Projects and delivery proof

Car Turntable Project References, Installation Media and Packing Proof

Real project media helps overseas buyers see finished customer sites, operation video references, export packing and the technical support process behind each car turntable project.

Request Project SupportView Product Range

Factory inspection

The turntable structure, drive system and control parts are checked before packing.

Protective packing

Main steel sections are wrapped, supported and fixed to reduce movement during transport.

Export-ready crates

Wooden crates, accessories and documents are prepared according to the shipment plan.

Installation support

Photos, drawings and video references help customers understand the installation workflow.

Selected project records

Finished projects, operation references and packing proof

The first public project records are selected from anonymized WebP materials. Heavy MP4 files are not served from the website.

Where exact project values are private, the card states that the region or value is masked instead of exposing customer details.

Australia Gold Coast residential car turntable installation in a private garage
InstalledAustralia / Gold Coast

Australia Gold Coast car turntable installation

Australia Gold Coast customer installation media shows a completed residential garage turntable in a finished private setting.

Country/Region
Australia / Gold Coast
Application
Residential garage access
Model
Custom residential car turntable
Diameter
Customer-approved project value masked
Rated load
Passenger-vehicle rated load, project value masked
Installation type
Customer-approved installation type masked
Surface finish
Finished anti-slip steel platform
Project status
Installed; customer-approved media
Video available
On request
Privacy note
Customer name, exact address, vehicle details and project values are not disclosed; Gold Coast location is used as the approved project label.
U.S. customer showroom car turntable installation for vehicle display
InstalledUnited States customer showroom

U.S. showroom car turntable installation

U.S. customer showroom media shows a completed vehicle display turntable used for showroom presentation and photography support.

Country/Region
United States customer showroom
Application
Showroom vehicle display
Model
Custom showroom car turntable
Diameter
Customer-approved project value masked
Rated load
Display-vehicle rated load, project value masked
Installation type
Customer-approved installation type masked
Surface finish
Showroom display platform finish
Project status
Installed; customer-approved media
Video available
On request
Privacy note
Customer identity, exact showroom address, vehicle details and project values are not public.
Australia Gold Coast installation project image
InstalledAustralia / Gold Coast

Australia Gold Coast installation

Australia Gold Coast customer installation media shows a completed residential garage turntable in a finished private setting.

Country/Region
Australia / Gold Coast
Application
Residential garage access
Model
Custom residential car turntable
Diameter
Customer-approved project value masked
Rated load
Passenger-vehicle rated load, project value masked
Installation type
Customer-approved installation type masked
Surface finish
Finished anti-slip steel platform
Project status
Installed; customer-approved media
Video available
On request
Privacy note
Customer name, exact address, vehicle details and project values are not disclosed; Gold Coast location is used as the approved project label.
U.S. customer showroom installation project image
InstalledUnited States customer showroom

U.S. customer showroom installation

U.S. customer showroom media shows a completed vehicle display turntable used for showroom presentation and photography support.

Country/Region
United States customer showroom
Application
Showroom vehicle display
Model
Custom showroom car turntable
Diameter
Customer-approved project value masked
Rated load
Display-vehicle rated load, project value masked
Installation type
Customer-approved installation type masked
Surface finish
Showroom display platform finish
Project status
Installed; customer-approved media
Video available
On request
Privacy note
Customer identity, exact showroom address, vehicle details and project values are not public.

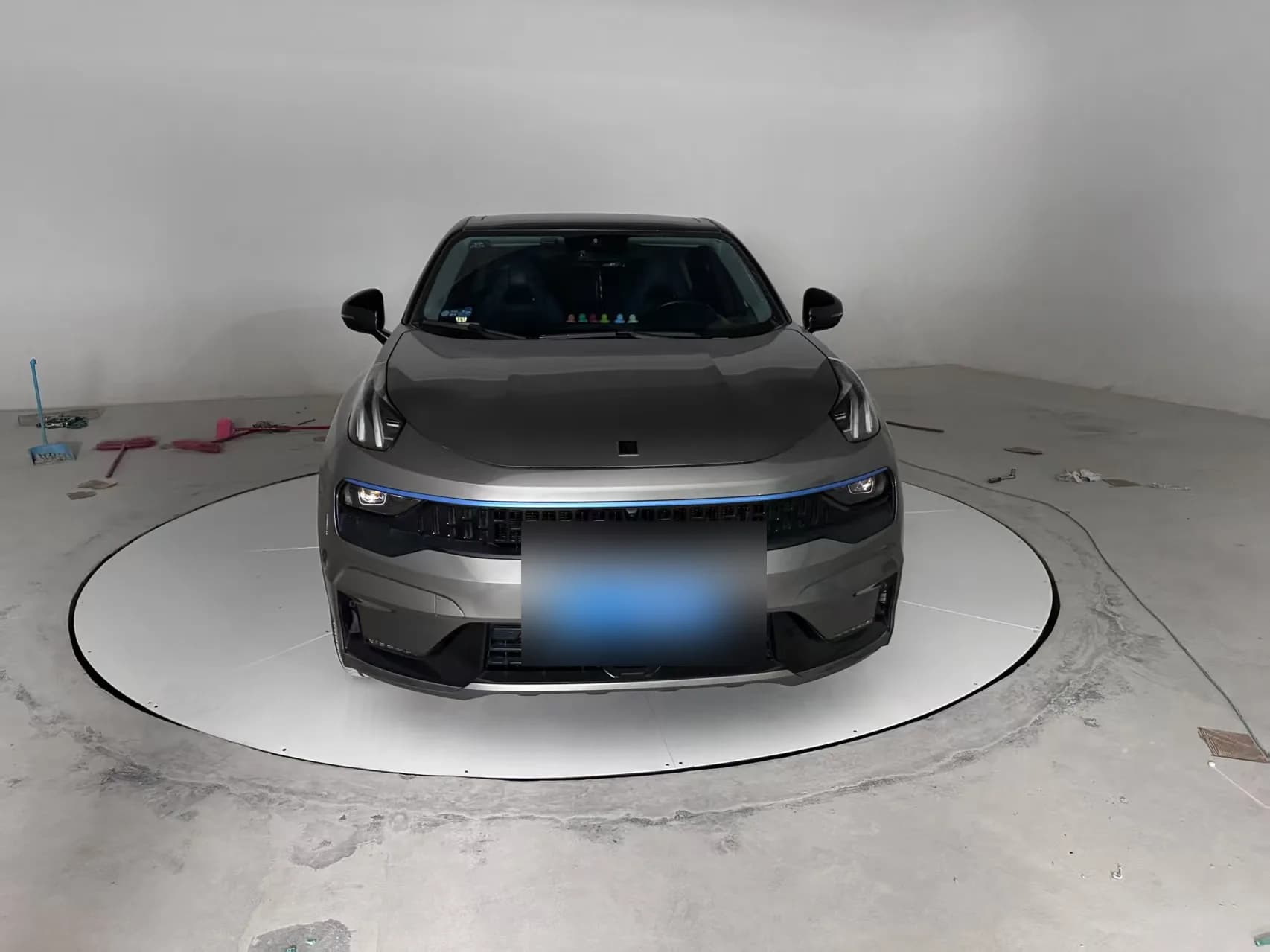

Finished indoor car turntable installation project image
InstalledMiddle East customer region masked

Finished indoor car turntable installation

Anonymized Middle East customer-region media shows a completed indoor garage turntable after installation.

Country/Region
Middle East customer region masked
Application
Indoor garage access
Model
Custom pit-mounted CTA turntable
Diameter
Customer-approved project value masked
Rated load
Passenger-vehicle rated load, project value masked
Installation type
Pit-mounted / flush-floor
Surface finish
Flush indoor platform finish
Project status
Installed; privacy-masked media
Video available
Yes
Privacy note
Customer region is generalized as Middle East, with license plate and exact site details masked before public use.

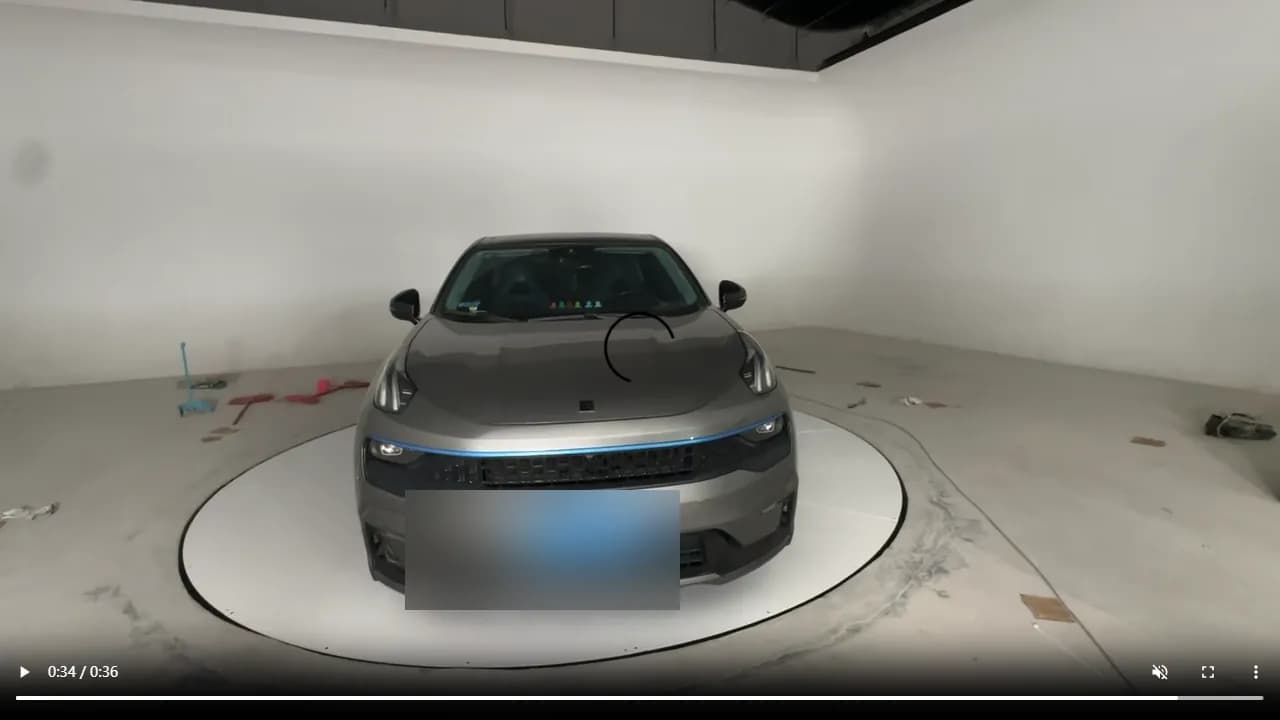

Customer operation video frame project image
OperationAfrica customer region masked

Customer operation video frame

An anonymized Africa customer-region operation frame shows completed turntable use without disclosing the exact site.

Country/Region
Africa customer region masked
Application
Residential garage operation
Model
Custom car turntable
Diameter
Customer-approved project value masked
Rated load
Project rated load masked
Installation type
Installed turntable operation
Surface finish
Installed surface finish masked
Project status
Customer-approved media
Video available
On request
Privacy note
Customer region is generalized as Africa, and operation media is used only after privacy masking and approval.

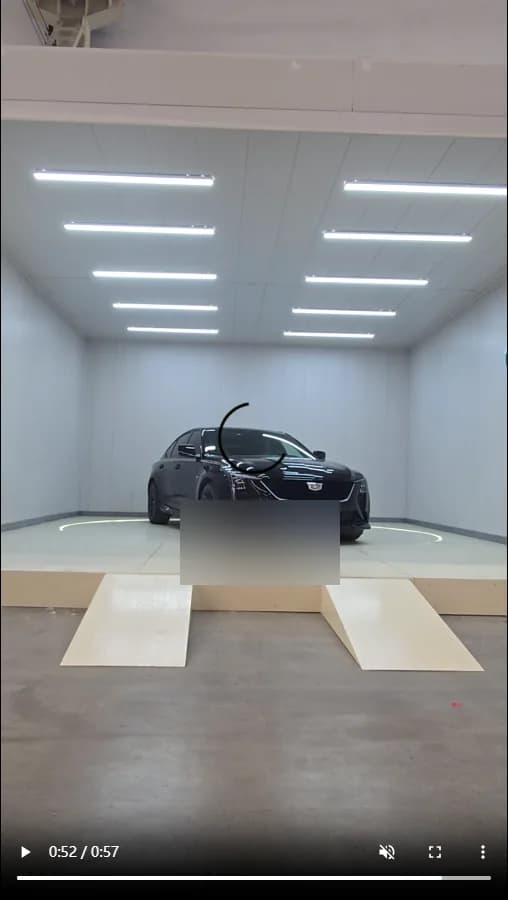

Showroom-style operation reference project image
OperationAsia customer region masked

Showroom-style operation reference

A privacy-masked Asia showroom reference demonstrates vehicle rotation and presentation use.

Country/Region
Asia customer region masked
Application
Showroom vehicle display
Model
Custom display turntable
Diameter
Customer-approved project value masked
Rated load
Display-vehicle rated load masked
Installation type
Showroom installation
Surface finish
Showroom finish masked
Project status
Operation reference
Video available
On request
Privacy note
Customer identity and exact showroom details are not public; region is generalized for privacy.

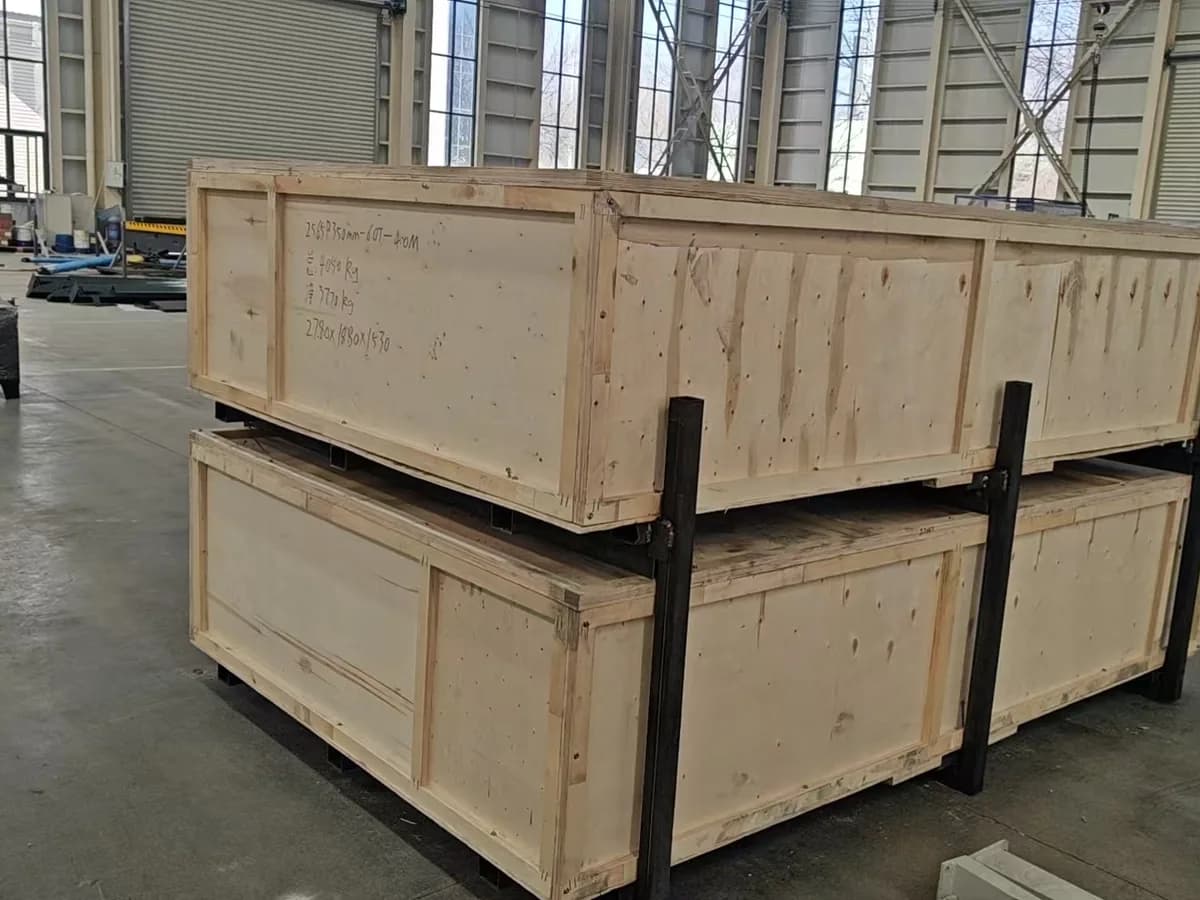

Steel-reinforced wooden crate packing project image
PackingChina / Huanyu factory

Steel-reinforced wooden crate packing

Turntable modules are protected in reinforced wooden crates and steel frames for overseas shipment.

Country/Region
China / Huanyu factory
Application
Export packing
Model
Custom CTA / CTB turntable modules
Diameter
Packed module dimensions vary by order
Rated load
Matched to packed project modules
Installation type
Packing proof
Surface finish
Protected module surfaces before site finish
Project status
Packing
Video available
On request
Privacy note
Packing records do not disclose customer name or destination unless confirmed.

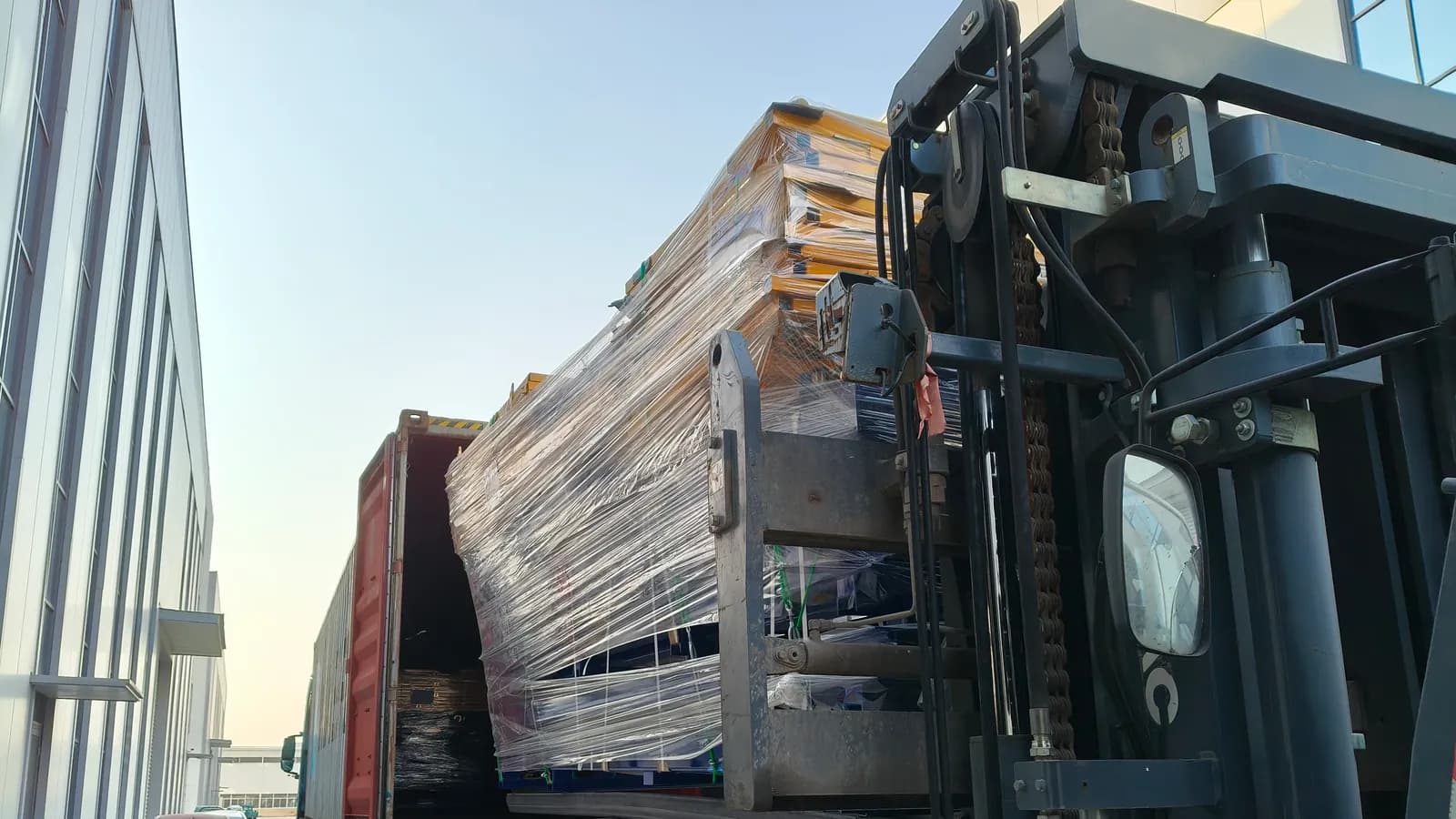

Container loading for overseas shipment project image
Container LoadingChina / Huanyu factory

Container loading for overseas shipment

Packed turntable modules are moved by forklift and loaded into the container before international delivery.

Country/Region
China / Huanyu factory
Application
Container loading
Model
Custom CTA / CTB turntable modules
Diameter
Packed module dimensions vary by shipment
Rated load
Matched to packed project modules
Installation type
Shipping proof
Surface finish
Packed for shipment
Project status
Container Loading
Video available
On request
Privacy note
Logistics media is published without private customer or shipment identifiers.

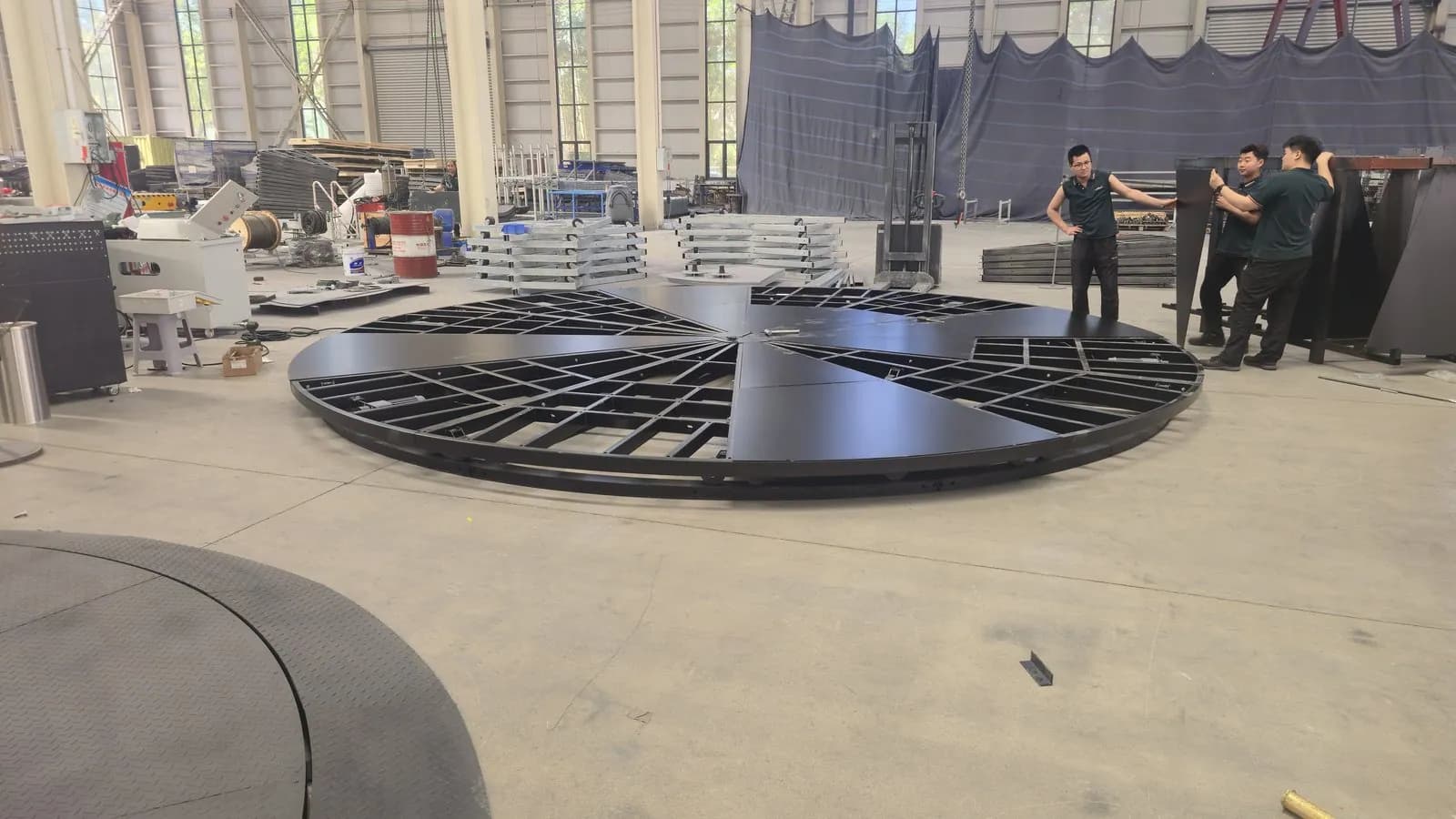

Factory assembly and turntable test project image
Factory TestChina / Huanyu factory

Factory assembly and turntable test

Workshop media documents assembly, inspection and project confirmation before packing.

Country/Region
China / Huanyu factory
Application
Factory test
Model
Custom car turntable
Diameter
Project-specific test platform
Rated load
Project-specific rated load
Installation type
Pre-shipment inspection
Surface finish
Factory test surface
Project status
Factory Test
Video available
Yes
Privacy note
Factory media shows technical process without private buyer details.
Pin-tooth and friction drive structure comparison project image
Factory TestChina / Huanyu factory

Pin-tooth and friction drive structure comparison

Factory video comparing pin-tooth and friction drive structures for custom car turntable projects.

Country/Region
China / Huanyu factory
Application
Drive structure comparison
Model
Custom car turntable drive structure
Diameter
Factory reference platform
Rated load
Factory reference load
Installation type
Technical comparison
Surface finish
Factory test surface
Project status
Factory Test
Video available
Yes
Privacy note
Technical comparison media is used as a public factory reference.

Project video references

Factory testing and privacy-masked operation videos

Hosted YouTube videos let buyers review real car turntable operation without slowing down the website with heavy local video files.

Installed video

Finished indoor car turntable installation

Anonymized Middle East customer-region media shows a completed indoor garage turntable after installation.

Watch on YouTube

Factory Test video

Factory assembly and turntable test

Workshop media documents assembly, inspection and project confirmation before packing.

Watch on YouTube

Factory Test video

Pin-tooth and friction drive structure comparison

Factory video comparing pin-tooth and friction drive structures for custom car turntable projects.

Watch on YouTube

What buyers can request

Project media can support technical confirmation

Before production and shipment, Huanyu can prepare clear project information so customers and installers understand the turntable, packing and installation requirements.

Factory inspection photos
Packing and crate photos
Installation drawing reference
Operation video after installation

Project quotation

Need a car turntable for a specific site?

Send the diameter, vehicle weight, installation type and destination country. Huanyu will prepare a project-based quotation.
